    Description

    130″ All-in-one LED Screen with no bezel

    130″ All-in-one LED Screen has superb picture quality powered by HDR and immersive Surface Sound, attendees can get more focused and deeply engaged for more productive meetings.

    CLEAR VISION, GREAT DECISION

    LG’s 130″ All-in-one LED Screen offers a truly captivating experience that inspires and moves the viewers. Striking visuals of vibrant imagery which are delivered on a 130-inch large-scale screen, and impactful Surface Sound driven by 36 embedded sound units, breathe life into your feelings and help you make a great decision.

    KEY FEATURES

    • Bezel-less
    • Large Screen
    • HDR Surface Sound Meeting Room
    • Solution Compatibility

    Features

    130" All-in-one LED Screen Features

    THE MOST EFFECTIVE AUDIOVISUAL EFFECTS

    Vivid Colour Expression Powered by HDR

    With HDR (HDR10, HDR10 Pro*) support, content becomes more vivid and has greater visual impact. The wider colour
    spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.

    130" Large Screen with No Bezel

    The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.

    Multi Screen with PBP/PIP

    PBP (Picture-By-Picture) features multi screen in a single display with up to 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

    Immersive Surface Sound

    The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded
    Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees,
    including people seated far from the screen.

    EASY INSTALLATION FOR USER CONVENIENCE

    Easy Remote Control Support

    The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.

    Front Serviceability

    The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.

    Auto Configuration

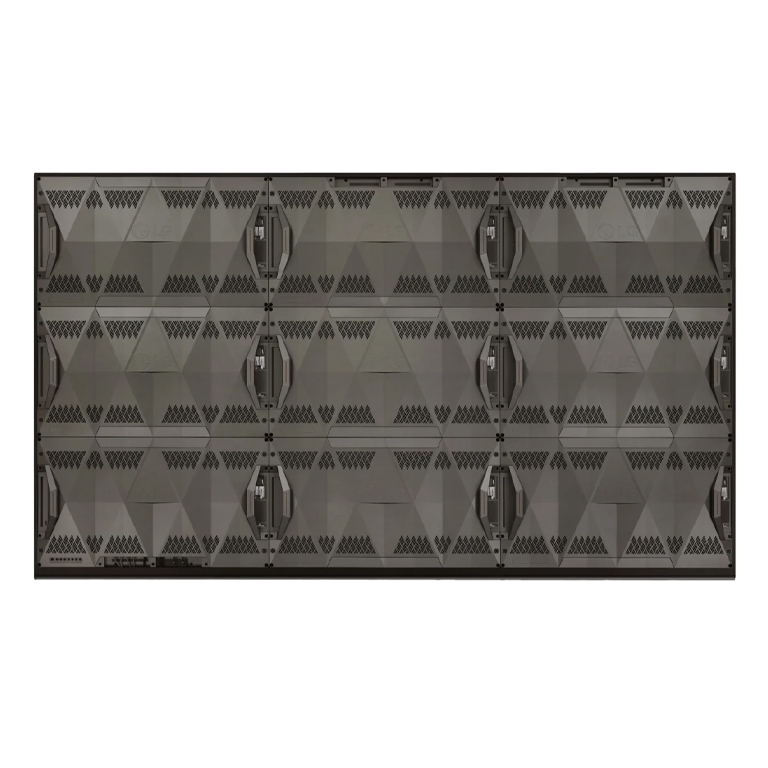

    LG's 130" All-in-one LED Screen is composed of one main cabinet and eight secondary cabinets. Each cabinet automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.

    Free Standing Option

    LG offers an optional stand accessory for customers who can’t choose a wall mount installation. It makes them move this 130-inch large screen easily and provides a sleek design that harmonizes with any space.

    HIGH COMPATIBILITY FOR MEETING ROOM

    Compatibility with AV Control Systems

    The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

    SuperSign Solution

    The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.

    Signage365Care

    Maintenance is easier and faster with the optional Signage365Care* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

    Specifications


    130" All-in-one LED Screen Specifications

    PHYSICAL PARAMETERS

    Pitch Name P1.5
    Pixel Configuration 3 in 1 SMD
    Pixel Pitch (mm) 1.50
    Screen Resolution (WxH) 1,920x1,080
    Screen Dimension (W x H x D,mm) 2,880 x 1,620 x 128.5 (w/o Screen Frame)
    Screen Weight (kg) 175 (w/o Screen Frame)
    No. of Modules per Unit Case (W x H) 4x3
    Unit Case Resolution (W x H) 640x360
    Unit Case Dimensions (W x H x D, mm) 960x540x128.5
    Unit Case Surface Area (㎡) 0.518
    Weight per Unit Case (kg/unit) Master: 20.85 Slave: 19.24
    Weight per Square Meter (kg/㎡) 37.6
    Physical Pixel Density (pixels/㎡) 444,444
    Flatness of Unit Case (mm) ±0.2
    Unit Case material Front : Die Casting Aluminum Rear : PC+ABS
    Service access Front and Rear

    OPTICAL PARAMETER

    Max. Brightness (cd/m²) 500
    Color Temperature 6,500
    Visual Viewing Angle (Horizontal) 160
    Visual Viewing Angle (Vertical) 140
    Brightness Uniformity 95%
    Color Uniformity ±0.015Cx,Cy
    Contrast Ratio 5,000
    Processing Depth (bit) 16(HDR10, HDR10 Pro)

    ELECTRICAL PARAMETER

    Power Consumption (W/Screen, Max.) 2,900
    Power Consumption (W/Screen, Avg.) 980
    Power Consumption (W/m², Max.) 622
    Power Supply (V) 100 to 240
    Frame Rate (Hz) 50 / 60
    Refresh Rate (Hz) 3,840
    Sound Output (Max.) 162W

    OPERATION CONDITIONS

    Lifetime (Half Brightness, hrs) 100,000 (It is subject to LED package spec.)
    Operating Temperature (°C) 0°C to 40°C
    Operating Humidity 10-80% RH

    CERTIFICATION

    Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC FCC Class A / CE / KC
    Environment RoHS

    CONNECTIVITY (EMBEDDED CONTROLLER)

    Video Inputs HDMI In(3), DP In, USB
    Control RJ45 In, RS232C In/out
    Special Features Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected(Network based control)

    BASIC ACCESSORY

    Basic Accessory Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual
