    Description

    Warranty: Camera, speakerphone: 3 years Accessories: 1 year

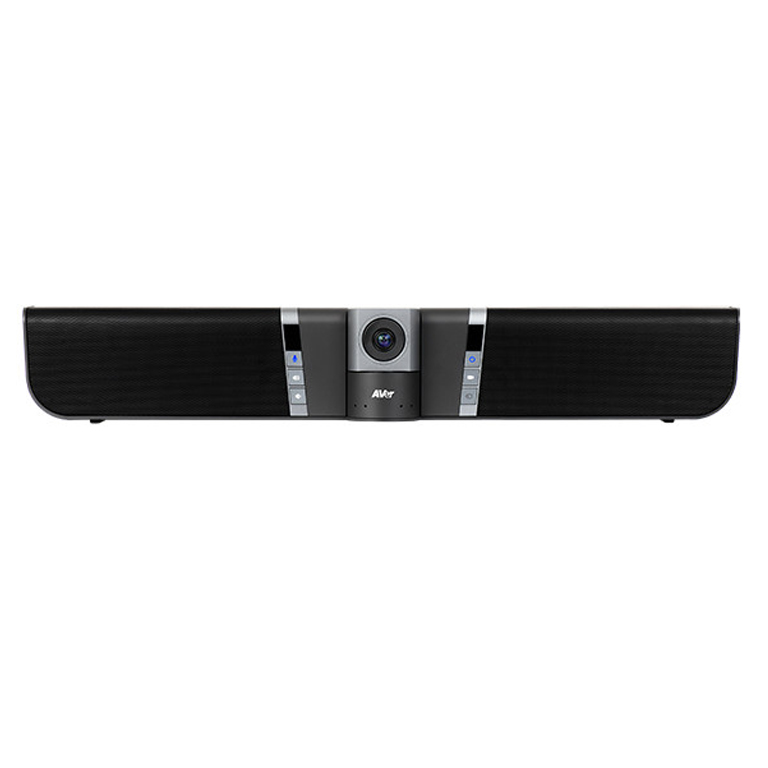

    The AVerMedia VB342+ Group Video Conferencing System is an all in one USB 4K UHD Huddle Room Camera and Audio. The new VB342+ makes group video calls easier and more efficient, delivering exceptional audio and video quality for enterprises. It is also equipped with cutting-edge features like SmartFrame, SmartSpeaker, True WDR, and FOV 120° to upgrade your conferencing experience.

    • AVer SmartFrame Captures Everyone
    • SmartSpeaker Instantly Identifies Speakers
    • Constant Clarity with True WDR
    • Fit Everyone in the Room
    • Analytics for Efficient Meeting Rooms
    • PTZ App

    Features

    AVer SmartFrame Captures Everyone

    Embedded with AVer SmartFrame, the VB342+ automatically frames all meeting participants, adjusting the camera zoom, pan, and focus to fit everyone on-screen in seconds without overreacting to unimportant movement. Have an efficient meeting with AVer SmartFrame.

    SmartSpeaker Instantly Identifies Speakers

    Highly sensitive SmartSpeaker Tracking pinpoints speakers wherever they are in the room, cutting through noise to zoom in on the human voice. Also, SmartSpeaker’s 6-meter diameter pickup range saves wasted time moving speakers closer to the microphone.

    Constant Clarity with True WDR

    Wide Dynamic Range controls the exposure and processes the light values of pixels in high-contrast backlight environments to provide clear images. Hold your meeting anywhere and in any lighting with the VB342+.

    Fit Everyone in the Room

    The VB342+ captures the room with a 120° FOV multi-glass lens that features a motorized 180° pan and 105° tilt view for a wider perspective than ever. No more concern about where your seat is located.

    Analytics for Efficient Meeting Rooms

    The VB342+ provides an analytics API so enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.

    PTZ App

    Free download for Windows® and Mac OSX
    Firmware field upgrade
    Advance device setting and diagnostic

    Compatible Applications

    Adobe Connect, Blue Jeans, Cisco WebEx®, Google Hangout, GoToMeeting™, Intel® Unite™, Microsoft® Lync™, Skype™, Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit, ZOOM

    Specifications


    Camera

    Sony Exmore sensor: Ultra crystal-clear image support up to 4K
    Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
    SmartFrame & SmartSpeaker: Automatic FOV adjustment to fit all participants and focus on the speaker
    120° wide field of view
    True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
    Digital zoom rate up to 4X leveraging 4K sensor
    3D denoise technology maintains clear and natural imaging in low light conditions
    Mirror, AE, white balance: Auto, manual override via PTZApp
    Minimum focus distance: 80 cm
    Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

    Motorized Pan and Tilt Movement

    Pan: Total horizontal viewing area 180°
    Tilt: Total vertical viewing area 105°
    10 camera presets (through remote control)
    Fast and quiet pan & tilt movement

    Audio

    Microphones: 2 unidirectional microphones supporting 6 m pickup
    5Wx2 stereo full range speakers with professional bass port tuned for communication
    Volume up to 96 dB SPL at 1/2 meter
    Echo cancellation
    Noise suppression
    3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones
    HDMI
    DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
    1080p HDMI output to TV**

    ** Win7/8 OS: Must install DisplayLink driver via AVer PTZApp

    Connectivity

    12V/5A power adaptor
    Mini DIN6 for RS232 connection
    USB type C connector
    HDMI out connection (DisplayLink)
    Phone in (3.5 mm audio jack)
    Mic input
    Wireless connection with mobile devices**

    **Wireless connection does not support wireless speakerphone devices.

    Video Format

    YUV, YUY2, M-JPEG
    USB
    3.1 Gen 1, backward compatible USB 2.0
    UVC (USB Video Class) 1.1

    Control

    IR remote control
    VISCA/pelco P/pelco D via RS232
    UVC/UVA plug-and-play
    PTZApp

    Security and Mount

    Camera wall-mount bracket included

    System Requirements

    Windows 7/10
    MacOS X 10.7 or higher
    Google Chromebook version 29.0.1547.70
    Android 5 or higher

    Hardware Specs

    (For assistance with hardware email hello@comcen.co.uk)
    2.4 GHz Intel® Core™2 Duo processor
    2 GB RAM or more
    USB 3.1 Gen1 port (supports 4K); USB 2.0 port (supports up to 1080p)

    Accessories

    Optional:
    10M Expansion Microphone
    20M Expansion Microphone
    5M USB 2.0 type-A to type-C cable
