    Description

    Warranty: Terms and conditions vary via region, please visit www.avocor.com/faq/avocor-global-warranty

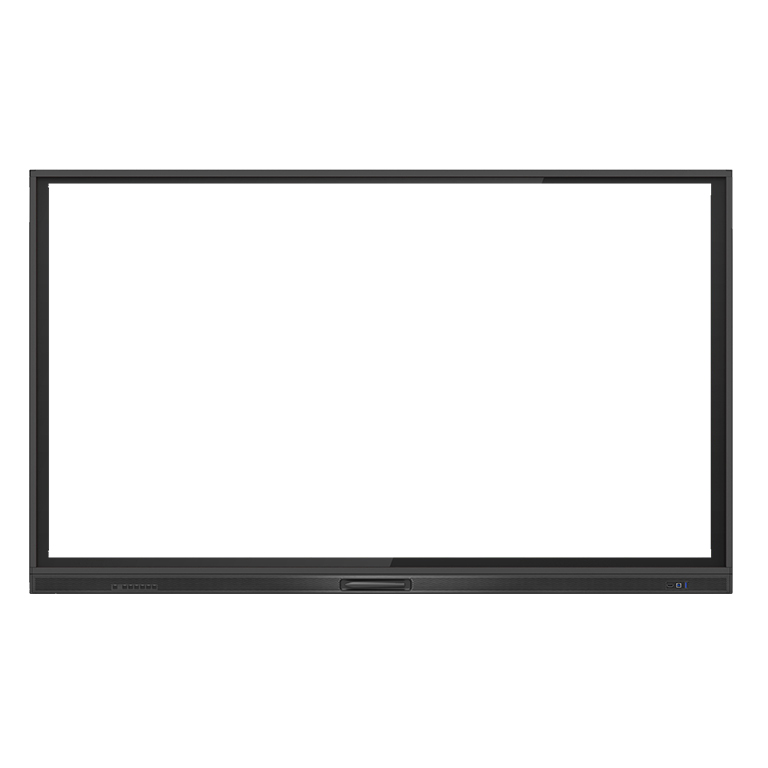

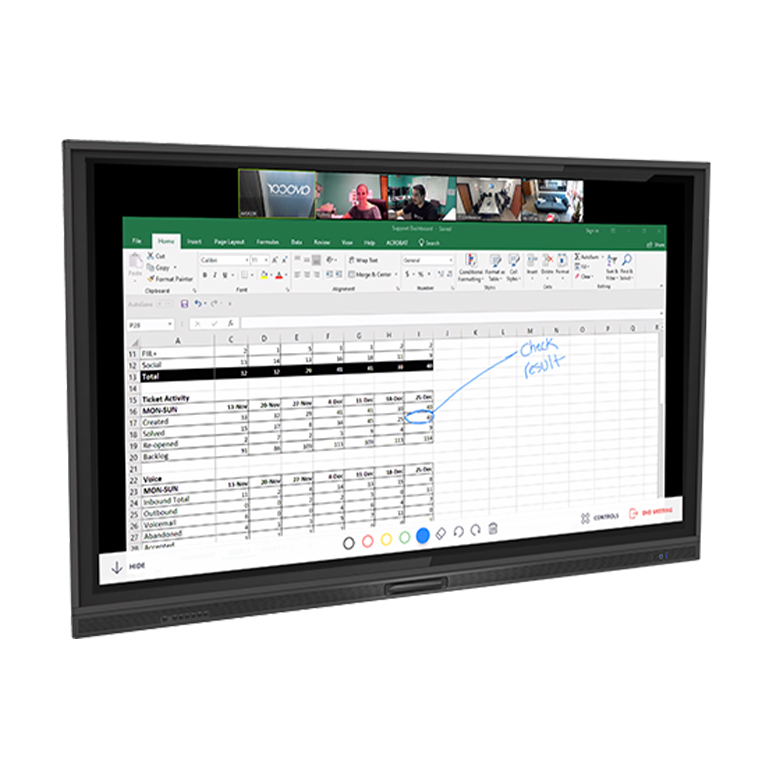

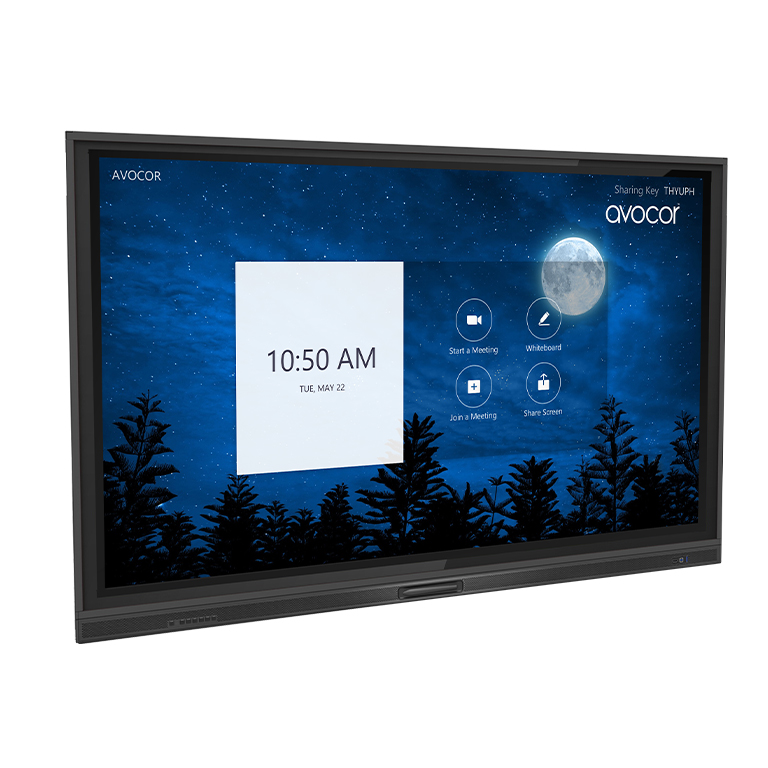

    The Avocor E Series Interactive Display is Accurate, Superior and Affordable.

    The Avocor E Series Interactive Display introduces first-to-market features such as optically bonded glass into a 4K IR display, making the E series the most high-performing, cost-effective solution available on the market.

    Delivering the ultimate experience for usability and collaboration.

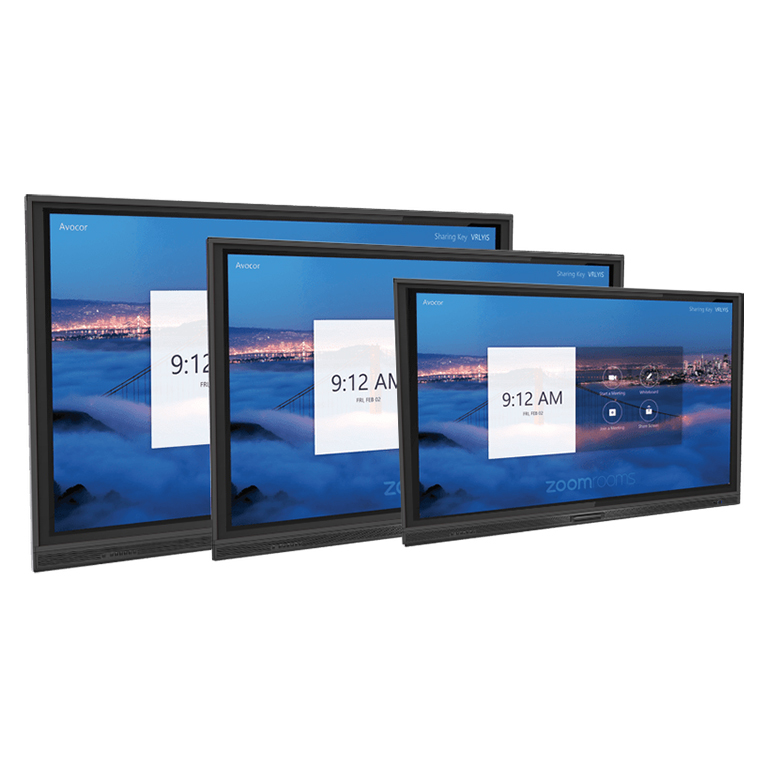

    Ranging in three sizes, 65”, 75” and 86”, the E series incorporates cutting-edge touch technology that delivers up to 20 ultra-fast touch points, creating an environment that inspires collaboration. The E series is the first interactive display on the market to offer ultra-thin, optically bonded glass. With no gap between the glass and actual display screen, users will enjoy a pixel-perfect touch experience with superior writing accuracy and pen performance. Optimized for Windows 10, the E series includes edge-swipe functionality that gives a true tablet-like experience on a large format display screen

    Anti-glare, anti-fingerprint glass delivers an exceptionally smooth, natural writing experience. Object recognition precisely recognises the size of the object touching the display, transitioning quickly between pen, finger and palm, enhancing the user experience. With the very latest in lightweight LED technology, the E series has an exceptionally slim bezel and 4K screen resolution that is visually stunning and the 30W, forward-facing speakers produce a crisp, clear audio performance.

    Features

    Avocor ESeries Interactive Display Features

    • Variety of sizes E55 55", E65 65", E75 75" E86 86"
    • Over the air firmware updates available
    • Pixel Perfect 4K resolution with type-C connectivity
    • Avocor UIQ dynamic user interface
    • Optically bonded anti-glare and anti-fingerprint glass
    • Crystal-clear audio experience
    • First-To-Market with 2mm Optically Bonded Glass On A 4k IR Display
    • Ultra-Fast 20-Points of Touch
    • Optimised for Windows 10
    • Pen Aware Functionality with A Fine-Tip Passive Pen
    • Control Bar
    • Connectivity Options

    Specifications


    Download Specifications Sheet

    Avocor ESeries Interactive Display Specifications

    DISPLAY

    Diagonal size 55"
    Backlight Direct LED
    Aspect ratio 16:9
    Resolution 4K@60Hz, 3840 x 2160
    Response time 8ms
    Brightness (average) 370 (cd/ms)
    Contrast ration (average) 4000:1
    Viewing angle° 178°/178
    Supported colors 30-bit deep color
    Display orientation Landscape

    CONNECTIVITY

    Guest inputs 1 x HDMI 2.0, 1 x USB-B Touch 3.0, 1 x USB-A 3.0 Hub, 1 x Type-C
    Side inputs 2 x HDMI 2.0, 1 x DisplayPort 1.2, 1 x USB-B 3.0 touch, 1 x USB-A 3.0, 1 x USB service port, HDMI Out (4K@60Hz), 2 x LAN Ethernet (RJ-45) in/out
    Audio 1 x 3.5mm audio out, 1 x optical (SPDIF)
    Control 1 x RS-232, 1 x LAN ethernet (RJ-45) in
    OPS slot Yes, 3840 x 2160 @60Hz

    DISPLAY & REMOTE CONTROL FUNCTIONS

    Auto-source detection Yes
    Source preview Yes
    Blank Yes
    Freeze Yes

    TOUCH SYSTEM

    Touch Up to 20 point Avocor Intelligent Touch, supports 1 x fine tip stylus
    Glass 2mm optically bonded, anti-glare, anti-fingerprint
    Supporting operating system Windows 8/10, Mac OS, Linux

    AUDIO

    Built-in speakers 2 x 15W forward facing

    PHYSICAL SPECIFICATION

    Product dimensions (W x H x D) 1286 x 78.4 x 802 mm | 50.6 x 3.1 x 31.6 in
    Shipping dimensions (W x H x D) 1415 x 270 x 932 mm | 55.7 x 10.6 x 36.7 in
    Weight Net: 32.5 kg | 71.65 lbs / Gross: 44.5 kg | 98.11 lbs
    Wall mount (VESA) 400 x 400 mm | 15.75 x 15.75 in
    Handles 2

    POWER

    Power supply AC100-240V (Worldwide)50/60Hz
    Maximum power consumption <220W
    Standby ≦0.5 W

    ENVIRONMENTAL

    Operating temperature 0°C ~ 40°C
    Storage temperature -20°C ~ 60°C
    Humidity 20% ~ 80%

    OTHER

    Country of origin China

    WHAT COMES IN THE BOX

    1 x Remote control & batteries, 2 x 3mm fine-tip passive touch pen, AC power cords (1 x UK, 1 x EU, 1 x US, 1 x AUS), 1 x USB-B 3.0 cable (3m|118.1 inches), 1 x HDMI cable (3m|118.1 inches), 1 x Quick Start Guide, 1 x Type-C cable (1.5m|59 inches)

    Accessories

    Avocor ESeries Interactive Display Accessories

    • Avocor i5 OPS PC
    • Avocor i7 OPS PC
    • Quicklaunch for Avocor
    • Austere Clean and Protect
