    Description

    Warranty: Two-year warranty

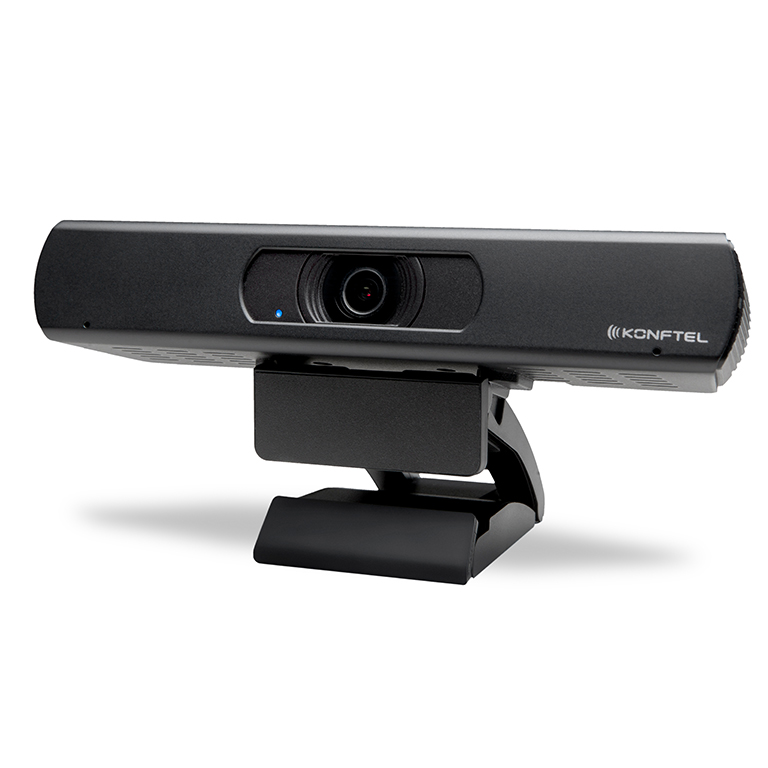

    The Konftel Cam20 conference camera 4K Ultra HD video to huddle rooms and medium-sized meeting rooms.

    Konftel Cam20 conference camera gives coverage to all the participants, who are presented naturally in the pin-sharp image. In short, the Konftel Cam20 is the ideal complement to your speakerphone – the perfect huddle room camera.

    You can also be sure that the other participants in the video conference will get a clear and balanced image of you and your colleagues – whether you opt to transmit in 4K or regular HD resolution. With WDR technology, the Konftel Cam20 automatically adjusts to achieve a good picture in different light conditions, even challenging ones such as low light, direct sunlight and high contrast.

    Impressive video quality – 4K Ultra HD
    Optimal field of view – 123°
    Smooth meetings – 8x digital zoom
    EPTZ
    Monitor the transmission
    Quick installation – Simultaneous output signal via HDMI and USB 3.0

    Features

    Impressive video quality

    You can also be sure that the other participants in the video conference will get a clear and balanced image of you and your colleagues – whether you opt to transmit in 4K or regular HD resolution. With WDR technology, the Konftel Cam20 automatically adjusts to achieve a good picture in different light conditions, even challenging ones such as low light, direct sunlight and high contrast.

    The perfect conference camera for Teams, Zoom, Webex, Slack, Skype for Business, GoToMeeting
    BlueJeans and Hangouts.

    Optimal field of view

    The Konftel Cam20 is optimized for situations where the conference cam needs to be positioned close to the table, as is normal in today’s many huddle rooms. The 105° field of view means that all the participants can sit in a comfortable position and still fit into the video image. At the same time, the camera creates a realistic image with no distortion.

    Smooth meetings

    Whatever your preferred app or cloud service, the Konftel Cam20 will sort out the video image as long as you can connect via USB. Once the meeting is up and running, you can control the camera’s digital Pan-Tilt-Zoom via the remote control with simple presets. 4K resolution makes the zoom deep and sharp.

    Monitor the transmission

    If you have an extra screen, you can connect it directly to the camera’s HDMI port, while the video image is being transmitted to the meeting via USB. This gives you a monitor that shows your side of the transmission in the room at all times.

    Quick installation

    The conference camera is quick and easy to mount in the meeting room. Use the flexible clamp to attach it to the screen or screw the base onto a stand in the perfect position. It can even go upside down on the bottom of the screen, thanks to the vertical image flip function. Then it’s Plug & Play via the USB connection. No extra drivers are needed as long as you have a modern operating system (Windows 8 or above) on your computer.

    Specifications


    Download Specifications Sheet

    Specifications Konftel Cam20

    General

    Product name: Konftel Cam20
    Item number: 931201001
    Contents: Konftel Cam20, 5 m USB cable (type A/type B), remote control with two AAA batteries, Quick guide, safety declaration.
    Product documentation: Manual, Quick guide
    Size: 194 x 34 x 42 mm without bracket
    Weight: 340 g
    Color: Charcoal black
    Warranty: 2 years

    Camera

    Resolution: 4K Ultra HD/30 fps
    Zoom: 8x digital
    Focus: Auto
    Field of view: 123°
    No. of presets: 255
    Video format: YUY2, MJPEG, H.264, NV12
    Camera control: UVC 1.5/IR Remote

    Connectivity

    USB: USB 3.0 type B

    Power Supply

    AC adapter: Delta ADP-30KR BD, 5V
    Power consumption: 3W

    System Requirements

    Operating system: Windows 7, 8, 10, Mac OS X, Linux

    Additional Features

    Software updates: Yes

    Environment

    Temperature: -10°C ~ 40°C

    Accessories

    Konftel C20Ego

    Huddle room video. Convenience in a box. The Konftel C20Ego video collaboration kit teams the Konftel
    Cam20 with the brilliant Konftel Ego speakerphone with OmniSound® audio quality. The Konftel OCC Hub brings the whole package together, so a single USB cable is all you need to connect the conference cam, the audio device and the room’s screen to the collaboration app on your laptop.

    Meeting size: Up to 6 people

    Konftel C2055

    Konftel C2055 is the perfect video collaboration solution for medium-sized meeting rooms, combining the Konftel Cam20 4K conference camera and the Konftel 55 speakerphone with OmniSound® audio quality. The Konftel OCC Hub brings everything together into one convenient package, so a single USB cable is all
    you need to connect the camera, the audio device and the room’s screen to the collaboration app on your laptop.

    Meeting size: Up to 12 people
