Specifications
Download Specifications Sheet
NEC Professional Desktop Projector Specifications
Projection Technology 3LCD Technology
Native Resolution
1024 x 768 (XGA)
Aspect Ratio 4:3
Contrast Ratio 1 16000:1
Brightness 1 4000 ANSI Lumen
Lamp 225 W AC (151 W AC Eco Mode)
Light Source Life [hrs] 10000 (15000 Eco Mode)
Lens F= 1.7–2.2, f= 17.4–29 mm
Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical
Projection Angle [°] 6.8 - 11.4
Projection Factor 1.3 – 2.2 : 1
Projection Distance [m] 0.88 – 10.94
Screen Size (diagonal) [cm] / [inch] Maximum: 762 / 300"; Minimum: 76 / 30"
Zoom Manual; x1.7
Focus Adjustment Manual
Supported Resolutions
3840x2160 @ 30hz digital;
1024x768 (Maximum resolution of analog input)
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

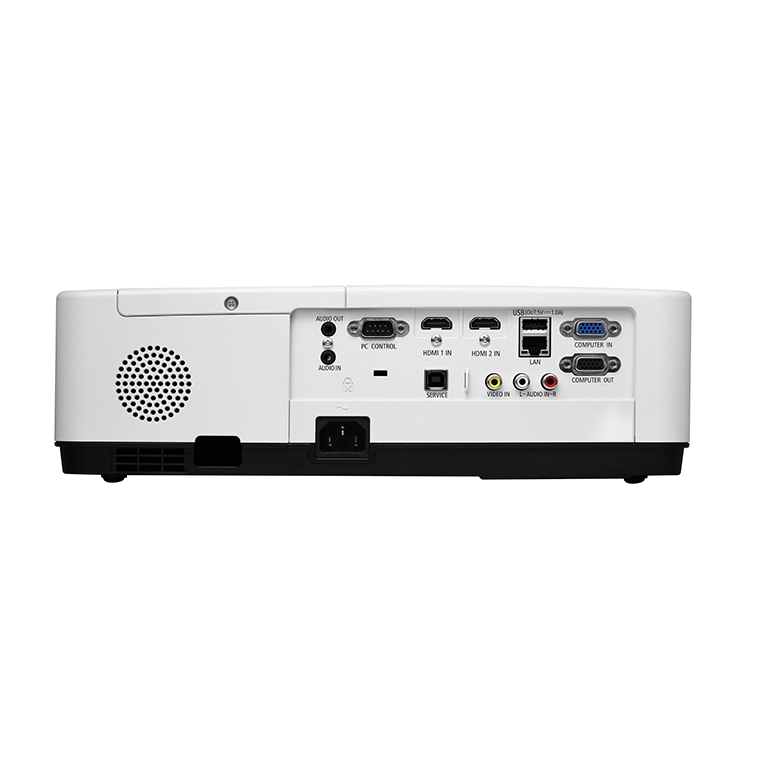

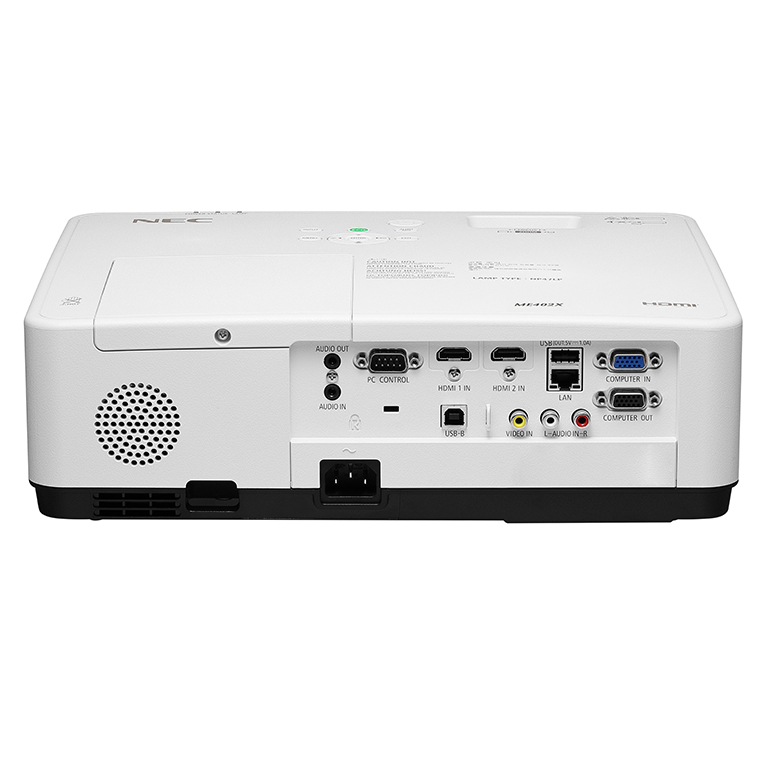

CONNECTIVITY
RGB (analog) Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
Digital Input: 2 x HDMI™ (Deep Color, Lip sync)
Video Input: 1 x RCA
Audio Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45; Optional WLAN
USB 1 x Type A (USB 2.0 high speed); 1 x Type B
Video Signals NTSC; PAL; PAL60; SECAM
REMOTE CONTROL
Remote Control Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Freeze; Help Eco Mode; ID set; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Source Select
ELECTRICAL
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 288 (High Bright) / 196 (Eco) / 1.5 (Network Stand-by) / 0.5 (Stand-by)
MECHANICAL
Dimensions (W x H x D) [mm] 345 x 104.6 x 261 (without lens and feet)
Weight [kg] 3.2
Fan Noise [dB (A)] 29 / 37 (Eco / Normal)
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80
ERGONOMICS
Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved; WEEE
Speakers [W] 1 x 16 (mono)
ADDITIONAL FEATURES
Special Characteristics Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM Simulation; Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Keystone Correction (H=±30°, V=±30°); Lens Cover; Magnify; NaViSet Administrator 2; Off-Timer; Optional User Logo; Optional WLAN; OSD with 29 languages; Password Security System; Quick On/Off; RS-232 Control; Security Bar; USB Display; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
GREEN FEATURES
Energy Efficiency 75 % AV mute function; Auto ECO Mode; ECO scheduler; Green one touch ECO and AV mute button; Intelligent Power Management; Longer Light Source Life; Reduced power consumption. Only 0.45W stand-by; Software scheduling
Ecological Materials 100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards ErP compliant; RoHs compliant; WEEE
WARRANTY
Projectors 3 years pan-European service
Light Source 6 months, max. 1000 hrs
SHIPPING CONTENT
Shipping Contents IR Remote Control (RD-469E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
OPTIONAL ACCESSORIES
Optional Accessories Lamp (NP47LP); MultiPresenter Stick; Universal Ceiling Mounts (PJ01UCM); Wireless LAN module NP05LM2 (Europe), NP05LM4 (Russia)1 Compliance with ISO21118-2012
