Professional Ultra-Short-Throw Projector Specifications
Projection Technology 3LCD Technology
Native Resolution
1280 x 800 (WXGA)
Aspect Ratio 16:10
Contrast Ratio 1 4000:1
Brightness 1 3500 ANSI Lumen (approx. 75% in Normal, 60% in Eco Mode)
Lamp 255 High Bright / 200 Normal / 160 Eco Mode
Light Source Life [hrs] 6000 Eco / 5000 Normal / 3800 High Bright Mode
Lens F= 1.8, f= 4.78 mm
Lens Offset [%] 81
Keystone correction +/- 10° manual horizontal / +/- 10° manual vertical
Projection Angle [°] 49.2
Projection Factor 0.36 : 1
Projection Distance [m] 0.1 – 0.51
Screen Size (diagonal) [cm] / [inch] Maximum: 279 / 110"; Minimum: 147.3 / 58"
Zoom 1.4 x Digital Zoom
Focus Adjustment Manual
Supported Resolutions
1920 x 1200 (WUXGA); 1440 x 900 (WXGA+); 1280 x 960 (SXGA);1024 x 768 (XGA);
1920 x 1080 (HDTV 1080i/60; 1400 x 1050 (SXGA+); 1280 x 800 (WXGA); 832 x 624 (MAC 16");
HDTV 1080i/50);1366 x 768 (WXGA); 1280 x 768 (WXGA); 800 x 600 (SVGA);
1680 x 1050 (WSXGA+);1360 x 768 (WXGA); 1280 x 720 (HDTV 720p); 720 x 576 SDTV 480p/480i;
1600 x 1200 (UXGA); 1280 x 1024 (SXGA); 1152 x 870 (MAC 21"); 720 x 480 SDTV 576p/576i;
1600 x 900 (WXGA++); 1152 x 864 (XGA); 640 x 480 (VGA/MAC 13")
1280 x 1024 (MAC 23");
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

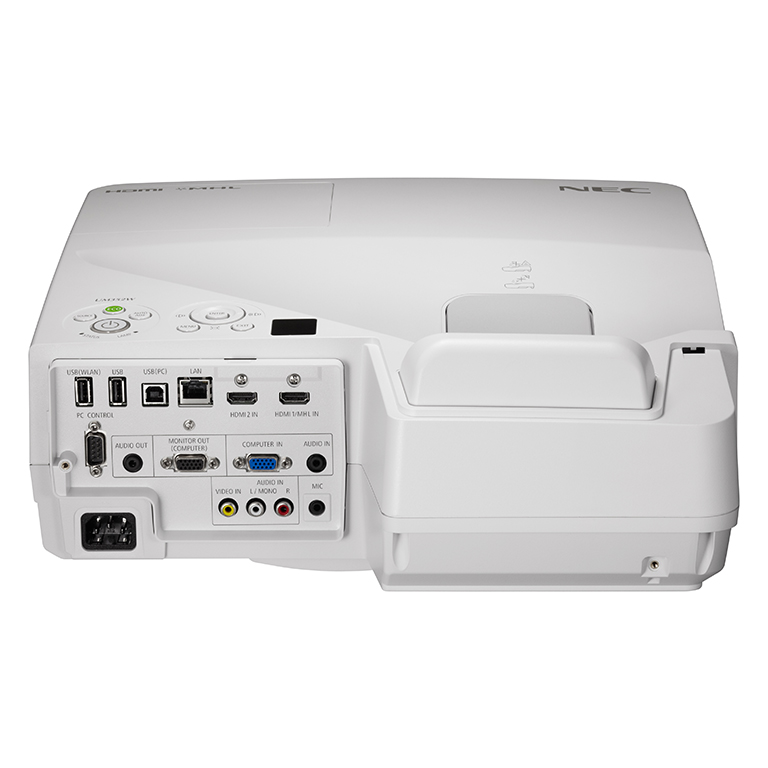

Connectivity
RGB (analog) Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
Digital Input: 1 x HDMI™ (Deep Color, Lip sync); 1 x HDMI™ with MHL support
Video Input: 1 x RCA
Audio Input: 1 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Microphone Input: 1 x 3.5 mm Stereo Mini Jack (Dynamic mic)
Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45; Optional WLAN
USB 1 x Type B; 2 x Type A (USB 2.0 high speed)
Video Signals NTSC; NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Control Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Direct Source Select; Freeze; Help Eco Mode; Help-function; ID set; Picture Adjust; Presentation and Mouse Control
Electrical
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 261 (Normal) / 216 (Eco) / 3 (Network Stand-by) / 0.5 (Stand-by); 326 (High Bright)
Mechanical
Dimensions (W x H x D) [mm] 378 x 112 x 428 (without lens and feet)
Weight [kg] 5.8
Fan Noise [dB (A)] 28 / 29 / 38 (ECO / Normal / High Bright)
Environmental Conditions
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80 non-condensing
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80 non-condensing
Ergonomics
Safety and Ergonomics CE; Gost-R; RoHS; TüV GS
Speakers [W] 1 x 20 (mono)
Additional Features
Special Characteristics AMX Beacon; Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM Simulation; Direct Power-Off Function; High Altitude Mode; Including interactive module and pen; Kensington security slot; Keypad Lock; Magnify; NaViSet Administrator 2; Off-Timer; Optional User Logo; Optional WLAN; OSD with 29 languages; Password Security System; PJ LINK; Quick On/Off; Remote control and administration via LAN and RS232; Security Bar; Test Pattern; USB Display; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
Green Features
Energy Efficiency 75 % AV mute function; Auto ECO Mode; ECO scheduler; Green one touch ECO and AV mute button; Intelligent Power Management; Longer Light Source Life; Reduced power consumption. Only 0.4W stand-by; Software scheduling
Ecological Materials 100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards ErP compliant; RoHs compliant
Warranty
Projectors 3 years pan-European service
Light Source 6 months, max. 1000 hrs
Shipping Content
Shipping Contents 2 Pens; IR Remote Control (RD-472E); Mini D-SUB Signal Cable; Multi-Touch Module (NP01TM); Power Cord (3 m); Quick Setup Guide; Security Sticker; USB cable A-B (5 m); Users Manual on CD-ROM; Wall-mount kit NP04WK
Optional Accessories
Optional Accessories DisplayNote; Lamp (NP33LP); Manual Height Adjustable Wall Mount PJ03WHM; Mobile Motorized Wall Mount NP02HM; PJ03MHA; Motorized Height Adjustable Wall Mount PJ03WHA; Wireless LAN module (NP05LM2/4/5)
1 Compliance with ISO21118-2012
