    Description

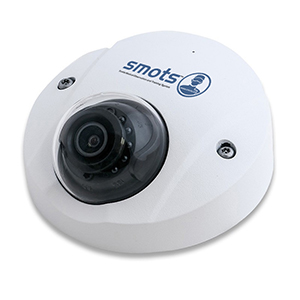

    4MP Microdome Cameras –  Amazing 4 Megapixel video that delivers every detail

    smots™ is an essential teaching requirement to record and display effortlessly in real time. The 4MP Microdome Cameras can be controlled remotely together with 2 way audio for real-time interaction and communication.

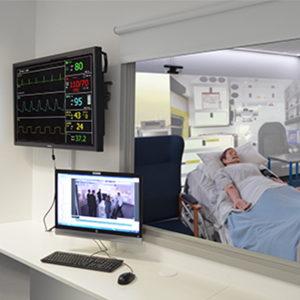

    Developed in order to allow recording and instant playback of medical simulations. The smots™ fixed camera solution is ideal for the medical environments where an unobtrusive overview is required.

    The high quality camera can be controlled remotely allowing for a full uninterrupted view of the events. With a 2 way audio for real-time interaction and communication. The instant playback means that lessons can be learned and progress made on the spot.

    Experience in the medical field has shown that simulation is well accepted by trainees. Performance on simulators improves with training and practice, prior to first performing procedures can improve clinical performance and refine skills without putting actual patients at risk.

    smots™ addresses a vital requirement in this modern healthcare advancement to display and record in real time teaching, training, and high dependency scenarios using the latest observation technology solutions available.

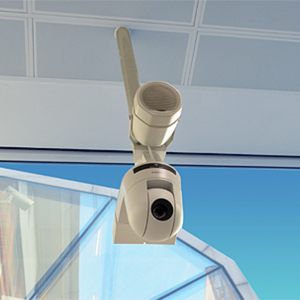

    The smots™ camera solution fits neatly to most ceilings, often using our semi permanent grid mounts which can allow for repositioning when required.





    Visit the manufacturer's website.

    Features

    4MP Microdome Cameras Features

    The unobtrusive nature of the camera allows for a more natural less self conscious interaction helping to create a more immersive role play scenario. The latest simulation technology has already demonstrated its value in medical education and clinical research and is now recognised as a valuable tool for training medical professionals and ensuring the highest levels of patient safety.

    Sensor: 4MP, WDR
    Compression: H.265, H.624, up to 30fps, AAC
    Intelligence: Analytics
    Other: DNA, PoE, Onvif, Cyber Vigilant
    Physical: Outdoor, Integral Mic, IR

    Specifications


    4MP Microdome Cameras Specifications

    Camera Features - IP67-All Environments’
    Sensor - 1/3” Progr sive CMOS
    Active Pixels (HxV) - 4MP (2688x1520)

    Minimum Sensitivity
    0.1 lux (colour). 30 IRE, F2.0, 1/3s shutter
    0.04 lux (mono). 30 IRE, F2.0, 1/3s shutter
    0 lux (IR, F2.0) with IR

    Dynamic Range - BLC, HLC, 120dB WDR
    Gain Control - Auto/Manual
    Back Light Compensation - On/Off/Custom ROI
    White Balance Mode - Auto/Manual
    Day/Night - True Day/Night with Mechanical IR Cut Filter
    IR Illuminator - Built-in IR Illuminator 850nm wavelength, effective distance >20m
    Video Resolution - 2688 x 1520 (4MP), 2560 x 1440, 2304 x 1296 (3MP), 1920 x 1080 (1080P),1280 x 960 (1.3MP),1280 x 720 (720P)
    Signal/Noise Level - > 50dB
    Lens Options - 2.8mm F2.0 Fixed Iris Horizontal view 104°
    Iris Control - Fixed Iris
    Shutter - Rolling; Auto from 1 to 1/10000 sec
    Exposure Control - Auto/Manual/Slow AE
    Gimbal Adjustment - 3 axis adjustment
    Video Compression - Full frame rate, full colour: H.265^/H.264/MJPEG; up to 30fps @ 1080p resolution; up to 30fps @ 4MP resolution
    Video Bit Rate - User-confi gurable bit rates from 24Kbps up to 10Mbps
    Video Multi-Streaming - Up to 32Mbps total video output; Unlimited multicast connections. Up to four 8Mbps unicast connections; Up to sixteen 1Mbps unicast connections

    Video Multi-Encoder
    Two simultaneous resolutions including: up to 4MP (30fps) plus 1080p (9fps) or 720p (21fps) or 4SIF (30fps) or lower
    Or two simultaneous resolutions including: up to 3MP (30fps) plus 1080p (25fps) or 720p (30fps) or lower
    Or two simultaneous resolutions including: up to 1080p (30fps) plus 1080p (30fps) or lower

    Video Analytics - Motion Detection, Tripwire^, Intrusion^, Abandoned Object^, Missing Object^, Scene Change^, Video Tamper^, Defocus Detect^, Face Detection^
    Audio Compression - G.711/ AAC
    Audio Bit Rate - Non user confi gurable, G.711 64Kbps - 80Kbps, AAC 16Kbps - 40Kbps
    Audio Resolution - G.711 8kHz sample rate, AAC 8,16,32,48kHz sample rate, Mono input
    Audio Analytics - Audio Input Abnormal^, Audio Intensity High^
    Audio Input - Built-in microphone
    Network Interface - IEEE802.3 and IETF standards: 10/100 Base-T Ethernet, TCP, UDP, RTP, RTSP, ICMP, IGMP, SNMP, HTTP, HTTPS, PPPoE, uPnP, QoS, DHCP
    Network Security - HTTPS, IP Filter, IEEE 802.1x
    CyberVigilant® Technology - Yes^
    Time - Embedded real-time clock, NTP client
    SD Storage - microSDHC 128GB support (card not included)*

    Dimensons/Weight - 106mm (dia) x 50.3mm (h) and 0.44kg
    Regulatory - EN55032 Class A, EN55024, EN50130-4, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, FCC Part 15 Subpart B Class A
    Housing - Metal with polycarbonate dome including 500mm cable bundle
    Protection Rating - IP67 / IK10 (IEC 62262)
    Electrical - PoE (802.3af Class 0); 4W
    Operating Temperature -20°C to 60°C
    Cold Start -20°C
    IndigoVision Software Requirements - Control Center v15.1 or later
    Supported Internet Browsers - Internet Explorer v11.0 or later
    ONVIF - Profile S
