    Description

    Warranty: Lifetime return-to-base

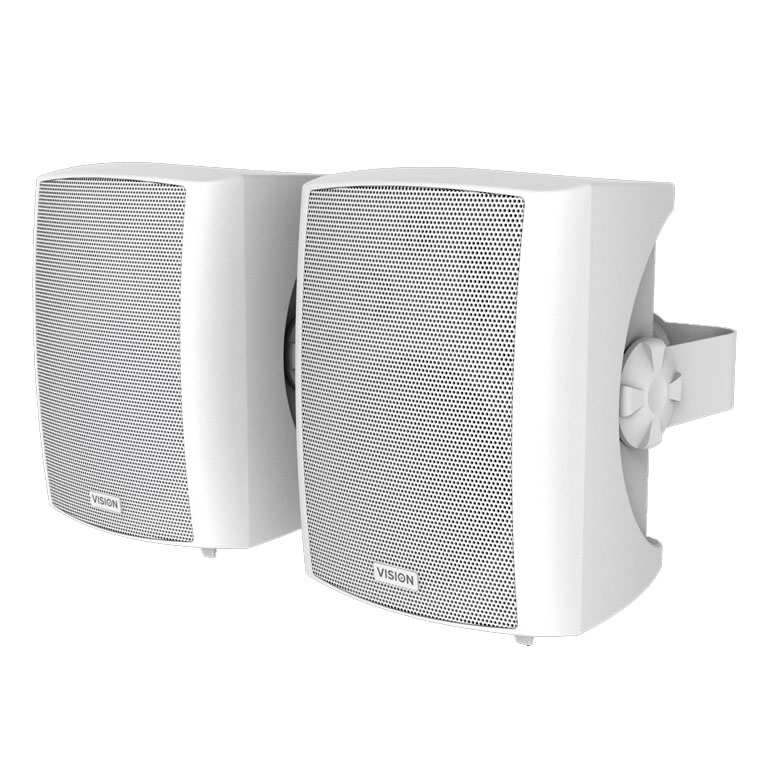

    SP1800 3Way Wall Loudspeakers are 5.25″ Woofer 50w loudspeakers with wall brackets included

    Vision’s SP1800 3Way Wall Loudspeakers are super-easy to install, look beautiful, and produce rich and powerful sound.
    They are 240mm tall and use a 5.25 inch woofer – the most popular size for classroom, meeting room, and boardroom applications.

    • Three-Way
    • Bass Reflex
    • Rugged Grille
    • Tough Finish
    • Pro AV Applications
    • Horizontal C bracket with 60º range of tilt adjustment
    • Professional wall mounted

    Features

    SP1800 3Way Wall Loudspeakers Features

    Three-Way

    These loudspeakers use three drivers; a woofer, a squawker, and a tweeter. Asking a driver to produce a wide range of frequencies is always a compromise, so dividing the sonic range into three means each driver has a narrower range of frequencies to produce, resulting in less distortion and clearer sound.

    Bass Reflex

    A bass reflex port allows greater excursion of the woofer, allowing the woofer to produce lower frequencies, and the phase-delayed movement of air from behind the woofer to the front reinforces the bass even more.

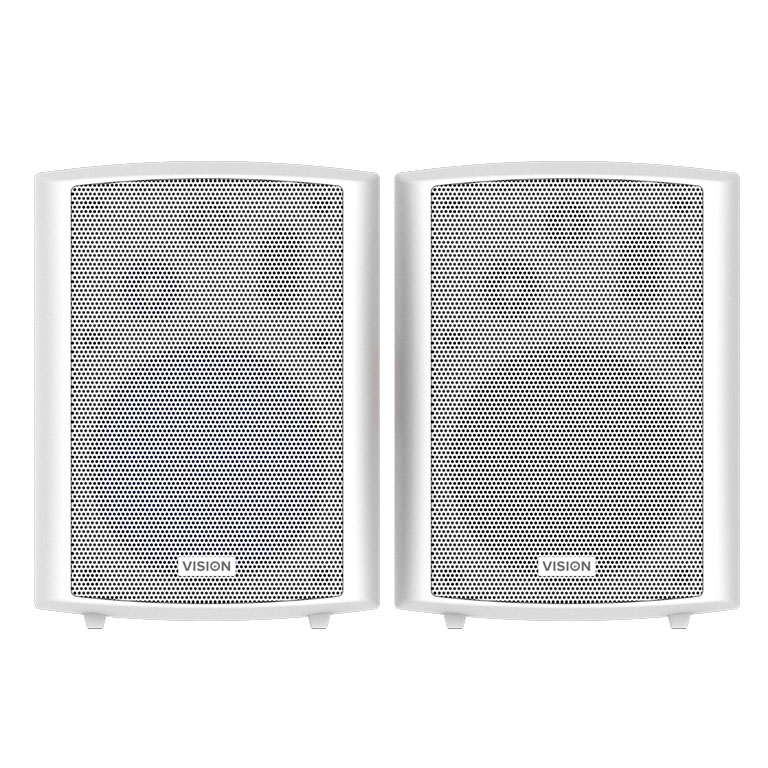

    Rugged Grille

    A metal grille protects the drivers from physical interference.

    Tough Finish

    Constructed with tough ABS plastic, the finish withstands the rigors of the professional use.

    Pro AV Applications

    In small to medium presentation environments a wide dispersion is generally more important than microphone feedback management, so no horns are used.

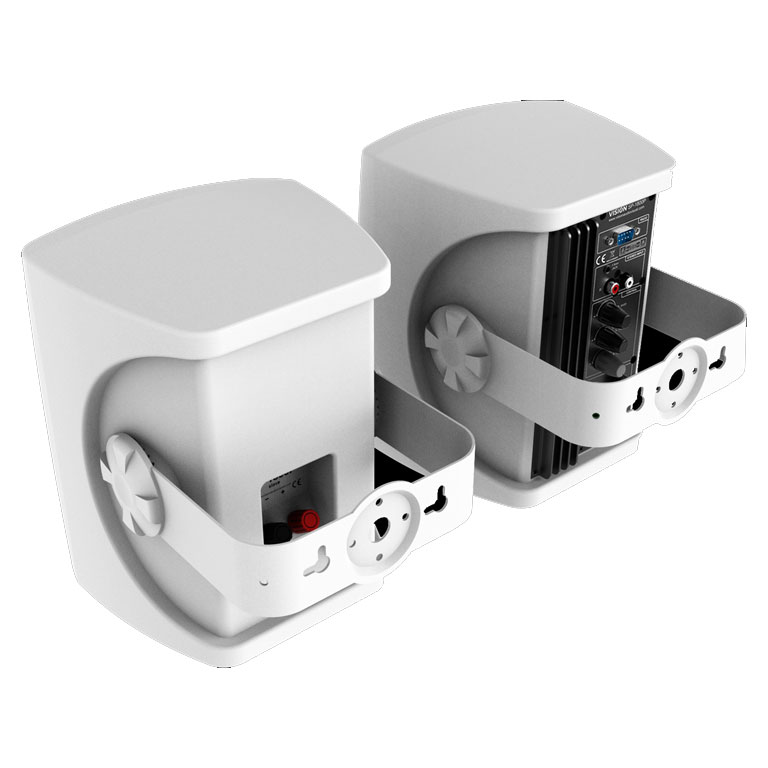

    Horizontal C bracket

    The adjustable brackets allow the installer to easily angle up 30º or down 30º. Or leave the brackets off and use as shelf speakers.

    Note: these are passive loudspeakers – there is no amplifier built in – so they need to be used with an external amplifier.

    Specifications


    Download Specifications Sheet

    SP1800 3Way Wall Loudspeakers Specifications

    Product Dimensions

    244 x 180 x 174 mm /9.61″ x 7.1″ x 6.85″ (tall x wide x deep for each speaker)

    Packaged Dimensions

    465 x 205 x 270 mm / 18.3″ x 8.1″ x 10.63″

    Product Weight

    4.2 kg /9.26 lbs (per pair)

    Packet Weight

    4.67 kg /10.23 lbs (per pair)

    Construction Material

    ABS

    Colour

    White

    Power Handling

    50 watts (RMS)

    Woofer

    5.25″

    Squawker

    1″

    Tweeter

    0.5″

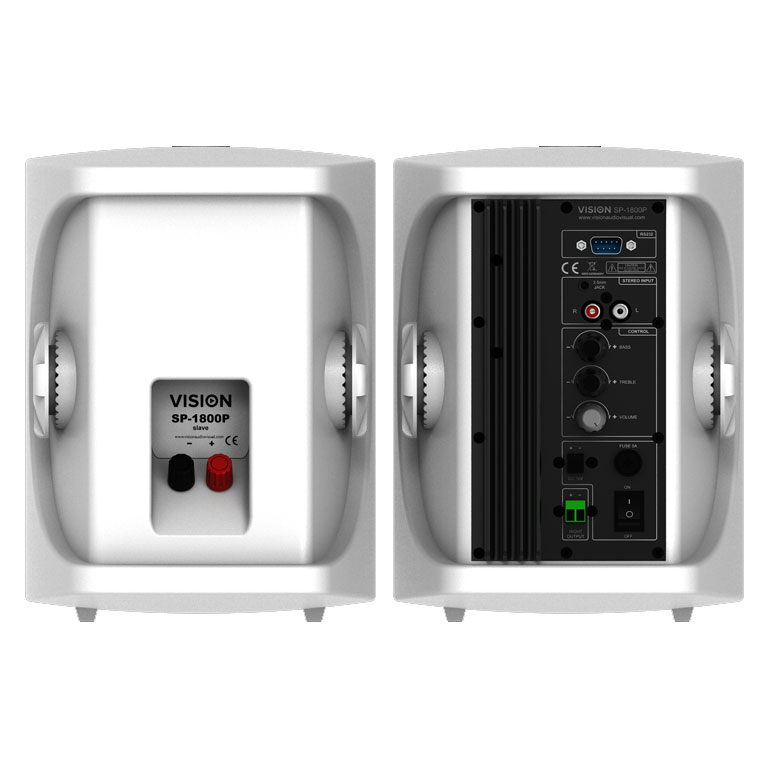

    Input Terminals

    Binding post

    Output Impedance

    8 ohms

    Sensitivity

    89dB (1w/1m)

    Frequency Response

    80Hz-20kHz

    Accessories Included

    2 x Wall brackets

    Compliance

    RoHS, WEEE, CE/ EMC, FCC, RCM-POC, RCM-SDOC, REACH

    Order Part Code

    SP-1800 [EU SAP: 3635038 / US SAP: 12928302]

    Bundled with AV-1800 amplifier

    AV-1800+SP-1800 [EU SAP: 4363209 / US SAP: 70017411]
    Bundled with TC3-AMP: TC3-AMP+SP-1800 [EU SAP: 3692237 / US SAP: 70017401]

    Country of Origin

    China
